Filter Materials

sprites

Overview

  • ● What's ELITOLONTM?

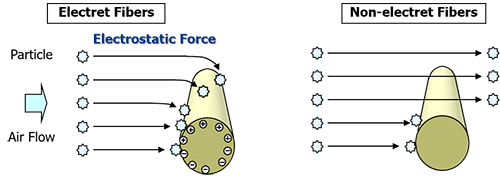

  • ELITOLONTM is an electrostatic (electret) filter developed by combining original polymerization technology, fiber production technology. Since the microfiber retains electricity, it becomes possible to effectively collect dust in the atmosphere, and it achieves high-capture efficiency with low-pressure drop.

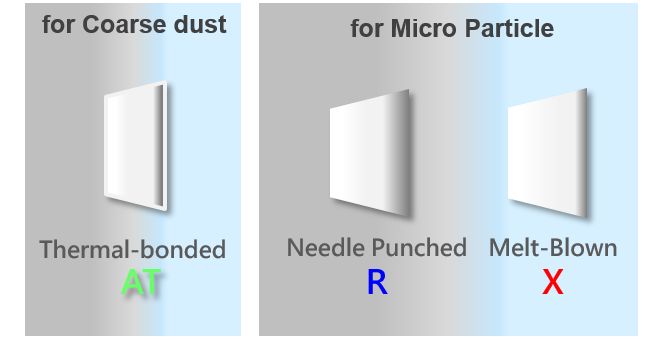

Feature

ELITOLONTM AT

ELITOLONTMAT are charged thermal-bonded non-woven fabrics that can be pleated with a single layer and has long-term durability due to its air permeability.

The above value of ELITOLONTM on the graph is an estimate value based on filter media properties by in-house measurement.

ELITOLONTM R

ELITOLONTMR are charged needle punched non-woven fabrics for filtration that has overwhelming low pressure drop different from melt-blown non-woven fabrics.

The above is in-house measurement result of the removal efficiency of 0.3μm particles in the atmosphere.
The above data is in-house measurement result for your reference only and cannot be guaranteed.

ELITOLONTM X

ELITOLONTMX are charged melt-blown non-woven fabrics for air filtration that achieves high-collection efficiency with low-pressure drop.

The test dust is 0.3μm particles in the atmosphere.
The above data is in-house measurement result for your reference only and cannot be guaranteed.

ELITOLONTM compared with Target Particulate matter

ELITOLONTM eliminates a wide range size of particle through the air.

ELITOLONTM cannot remove all harmful substances in the atmosphere.

Specification and Property

ELITOLONTM AT Physical Property

Media Code Weight Thickness*1 Pressure Drop*2 Collection Efficiency*3 Collection Efficiency*4
⊿P ISO A2 TSI(NaCl)
  [g/m2] [㎜] [Pa] [%] [%]
EFAT75S 75 0.7 3 50 31
EFAT80SB 80 0.8 4 55 36
EFAT90S 90 0.8 4 65 44
EFAT100 100 2.0 2 70 46
EFAT100F 100 0.9 9 89 73
  • *1 Load: 15.3g/cm2
  • *2 Velocity: 10cm/s
  • *3 Velocity: 10cm/s, Measured with ISO11155 Compliant Duct.
  • *4 Velocity: 5.3cm/s, TSI-8130 32Ｌ/min

The above data is measurement result for your reference only and cannot be guaranteed.

ELITOLONTM R Physical Property

Media Code Weight Thickness*1 Pressure Drop*2 Collection Efficiency*3 Collection Efficiency*4
⊿P TSI(NaCl) PFE
  [g/m2] [㎜] [Pa] [%] [%]
EFR15 30 0.6 0.6 46 95
EFR25 40 1.1 1.0 66 97
EFR35 50 1.2 1.0 70 97
EFR45 60 1.4 1.5 75 97
EFR65 80 1.7 3.0 90 98
EFR80 95 1.9 4.5 93 98
EFR100 130 2.0 7 98 99
EFR150 200 2.8 10.0 99.6 99.6
  • *1 Load: 7.0g/cm2
  • *2 Velocity: 5.3cm/s
  • *3 Velocity: 5.3cm/s, TSI-8130 32Ｌ/min
  • *4 ASTM F 2299 Area: 49cm2,Flow: 28.3L/min, Velocity: 9.6cm/s

The above data is measurement result for your reference only and cannot be guaranteed.

ELITOLONTM R Physical Property with scrim for pleating

Media Code Weight Thickness*1 Pressure Drop*2 Collection Efficiency*3
TSI(NaCl)
  [g/m2] [㎜] [Pa] [%]
EFR15L 100 1.2 0.8 69
EFR25L 110 1.2 1.0 77
EFR35L 120 1.3 1.5 80
EFR80L 160 1.7 4.0 93
  • *1 Load: 7.0g/cm2
  • *2 Velocity: 5.3cm/s
  • *3 Velocity: 5.3cm/s, TSI-8130 32Ｌ/min

The above data is in-house measurement result for your reference only and cannot be guaranteed.

ELITOLONTM X Physical Property

Media Code Weight Thickness*1 Pressure Drop*2 Collection Efficiency*3 Collection Efficiency*4
⊿P TSI(NaCl) PFE
  [g/m2] [㎜] [Pa] [%] [%]
EFXA15FG 15 0.2 16 99.2 99.8
EFXA18FG 18 0.2 19 99.7 ≧99.9
EFXA30FG 30 0.35 35 99.95 ≧99.9
EFXB18UG 18 0.2 30 99.93 ≧99.9
EFXB22UG 22 0.24 40 99.98 >99.9
EFXB24UG 24 0.28 46 99.99 >99.9
EFXC18UG 18 0.2 30 99.98 ≧99.9

EFXB26UG for H14 is under development.

  • *1 Load: 7.0g/cm2
  • *2 Velocity: 5.3cm/s
  • *3 Velocity: 5.3cm/s, TSI-8130 32Ｌ/min
  • *4 ASTM F 2299 Area: 49cm2,Flow: 28.3L/min, Velocity: 9.6cm/s

The above data is measurement result for your reference only and cannot be guaranteed.

Applications

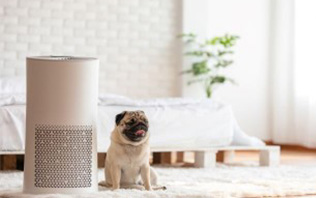

  • Air Purifier

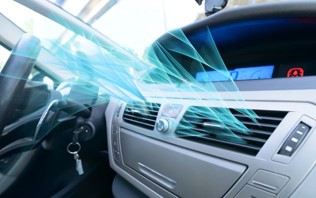

  • Cabin Air Filter

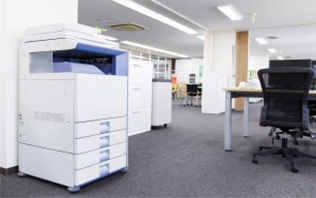

  • Office Automation Equipment

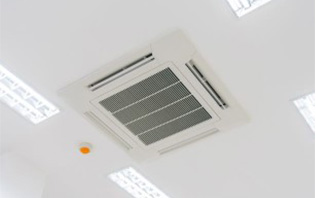

  • Air Conditioning Equipment

  • Mask
