Tsunooga®
Outline
-
-
Tsunooga® is industrial fiber material which has excellent strength and modulus. Tsunooga® surpasses para-aramid fibers in lightness and cut resistance and offers more than twice cut resistance than nylon and polyester fibers.
(evaluated using the EN388 coup test method)
And low specific weight 0.97g/cm3. Moreover, Tsunooga® provides outstanding resistance to weather and chemicals.
-
Features

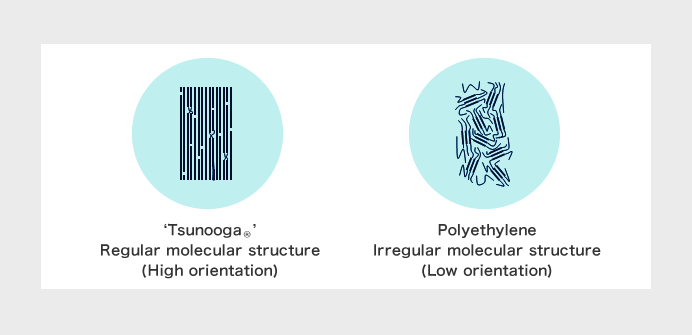

Molecular Structure
Tsunooga® is made from high molecular weight polyethylene processed under ideal spinning conditions.
Comparison of Properties of ‘Tsunooga®’
| Strength | Modulus of Elasticity | Fracture Elongation |
Density | Moisture percentage |
|||
|---|---|---|---|---|---|---|---|
| ｃN/dtex | GPa | ｃN/dtex | GPa | % | g/m3 | % | |
| ‘Tsunooga®’ | 14 or more | 1.4 or more | 430 or more | 43 or more | 6.0 | 0.97 | 0.0 |
| p-Aramid | 19 | 2.8 | 750 | 109 | 2.4 | 1.45 | 4.5 |
| m-Aramid | 4.7 | 0.65 | 124 | 17 | 22 | 1.38 | 4.5 |
| Steel | 3.5 | 2.8 | 260 | 200 | 1.4 | 7.8 | 0 |
| Carbon Fiber | 20 | 3.5 | 1310 | 230 | 1.5 | 1.76 | - |
| Polyester | 8 | 1.1 | 110 | 15 | 25 | 1.38 | 0.4 |
Basic Properties
Physical property of ‘Tsunooga®’（Representative value）
| Type | ‘Tsunooga®’ | ‘Tsunooga®’ Black spun-dyed |
|
|---|---|---|---|
| Single yarn fineness | dtex | 1.2 | |
| Density | g/cm3 | 0.97 | |
| Moisture percentage | (%) | 0.0 | |
| Strength | ｃN/dtex | 14 | |
| GPa | 1.4 | ||
| Modulus of Elasticity | ｃN/dtex | 430 | |
| GPa | 43 | ||
| Fracture Elongation | ％ | 6.0 | |
| Melting point | ℃ | 145 | 145 |
| Linear expansion coefficient | ppm/℃ | - | - |
Product Lineup

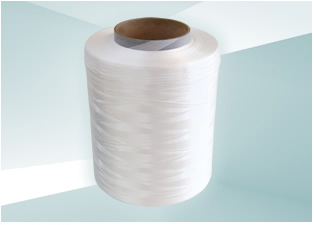

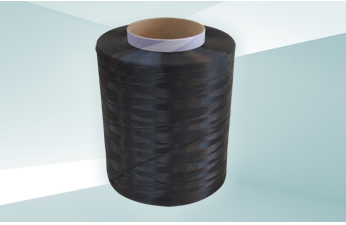

‘Tsunooga®’ (filament)
| Type | ‘Tsunooga®’ | ‘Tsunooga®’Black spun-dyed |
|---|---|---|
| Fineness / Number of filaments (cN/dtex) |
440 / 360 220 / 180 |
440 / 360 |
| Inner diameter of bobbin(mm) | 94 | 94 |
| Length of bobbin(mm) | 230 | 230 |
Tsunooga® usage
-
Cloth
-
Cut fiber
-
Non woven
-
Composite yarn
-
Cloth
-
Cut fiber
-
Non woven
-
Composite yarn
Applications

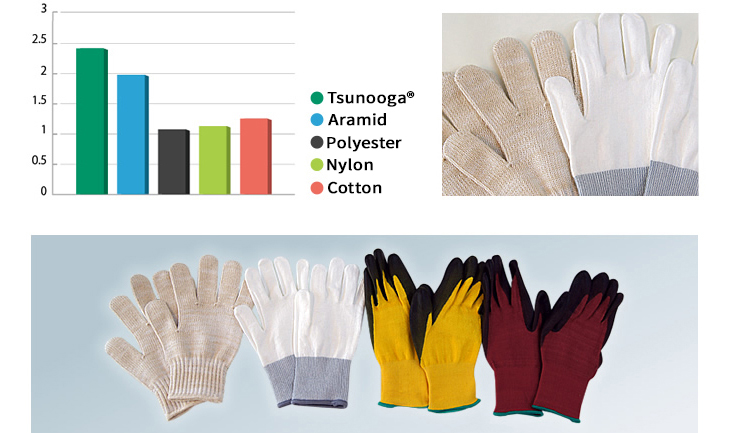

１．Gloves
Tsunooga® is a high strength polyethylene fiber with excellent cut resistance. Gloves made with Tsunooga® is a soft and nice texture. Also, no solvents are used in the manufacturing of the fiber, so it is better than other HMWPE yarns from a hygienic standpoint.
２．Bedding
-
‘Tsunooga®’ has high specific heat and high thermal conductivity, so it absorbs heat from the skin, thereby diffusing heat. Using the fiber in fabrics gives the fabric a cool touch to the skin.
The information on this page, to the best of our knowledge, is accurate and correct,
However, Toyobo makes no warranty and assumes no liability whatsoever in connection with any use of this information.
Users determine for themselves the suitability for their intended use of the material.
This information is subject to revision as new information becomes available.
-
