Engine room hood with high rigidity and impact resistance
HAYATE®
Features

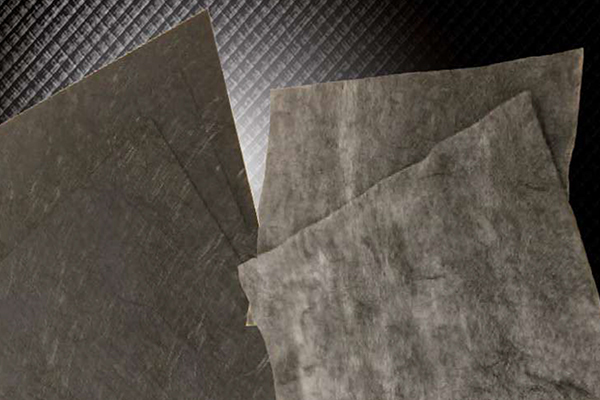

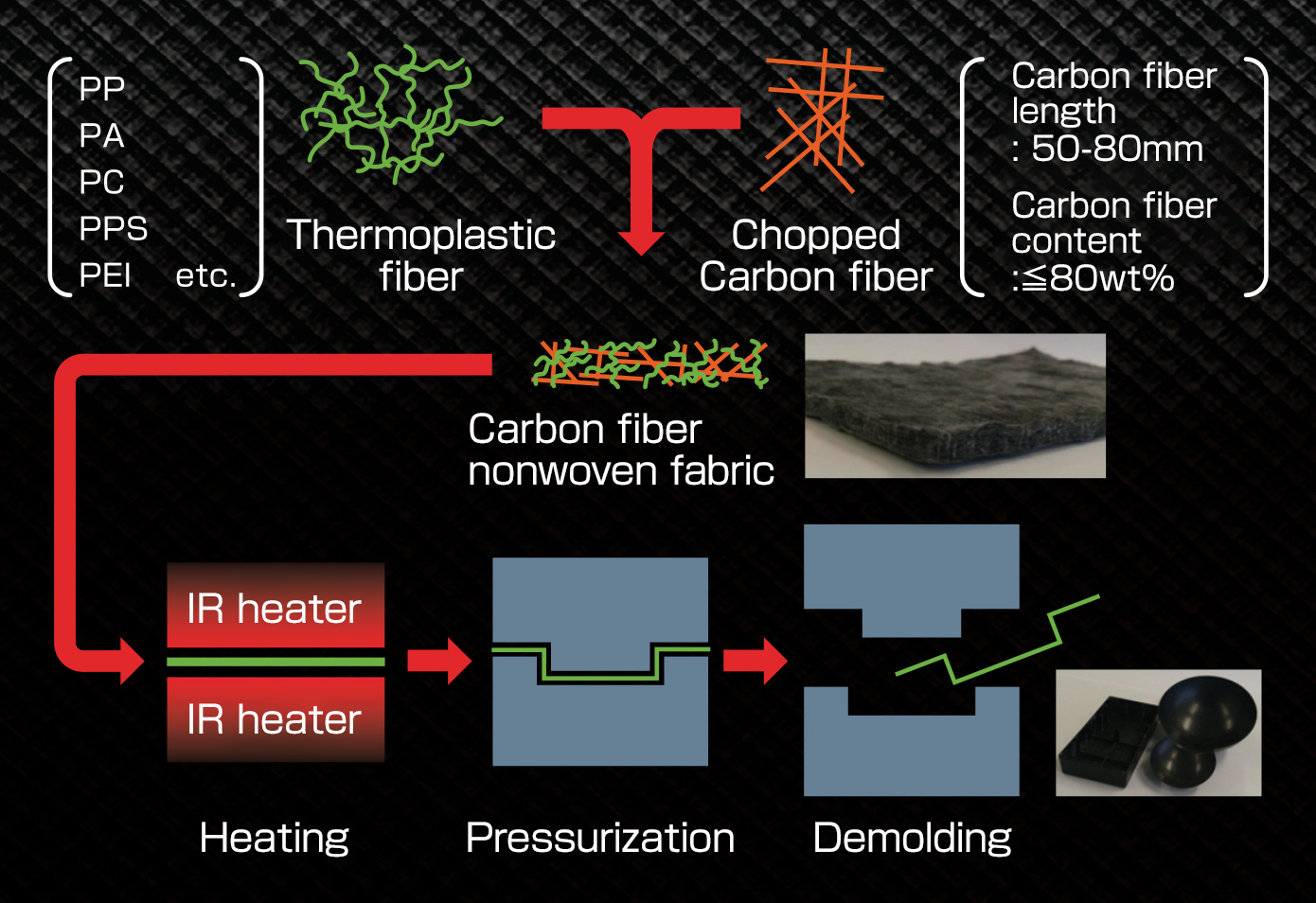

- ● Carbon fiber nonwoven fabric for press molded CFRTP.
- ● High mechanical properties due to long carbon fiber.
- ● High formability and moldability.
- ● Thermoplastic fiber according to the application and required characteristics.
- ● Effective utillization of recycled carbon fiber.
- ● Mass production with Maximum width of 2000mm.
Specification・Performance
- <<Mechanical properties>>
- CF/PP＝40/60wt％(Vf25％)
| 項目 | Tensile modulus | Tensile strength | Bending Modulus* | Bending strength* | Izod impact value |
|---|---|---|---|---|---|
| Unit | （GPa） | （MPa） | （GPa） | （MPa） | （KJ/㎡） |
| Measured value | 39.6 | 452.9 | 29.4 | 249.5 | 50.1 |
- * 3 point bending test
- It is an actual measurement value in molded CFRTP, not a guaranteed value.
