• Door checker with smooth opening and closing

    GLAMIDE®

Features

    • ● High abrasion resistance & low coefficient of friction :
      Abrasion = Constantly keep load after repetition of opening and closing
      Low frictional resistance = Realize smooth opening and closing
    • ● Weight saving : From metal to resin
    • ● Toughness : Unbreakable on moving with high impact resistance

Spec・Properties

  • ＜＜Physical properties table＞＞
Grade name GLAMIDE®
T-656E		 Non-reinforced PA66
Features Sliding property
/ Low abrasion
/ Toughness 		ー
Composition Non-reinforced PA66 Non-reinforced PA66
Flexural strength (Mpa) 99 117
Flexural modulus (GPa) 2.8 2.7
Charpy impact strength (kJ/m2) 12.0 4.5
Taper abrasion
CS-17　1000cycles
(mg/1000 times) 		＜5 8

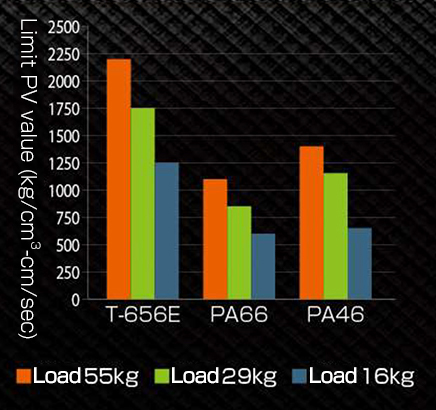

    • ● Limit PV value on thrust abrasion test

    • ● Abrasion loss on 55kg/cm2 load
