• Console hinge that combines high rigidity, high dimensional precision, and attractive appearance

    GLAMIDE®

Features

  • ● High rigidity: Replacing metal reduces weight
  • ● High impact resistance: Withstands impact when opening and closing
  • ● Low warpage: Significantly limits warpage = No interference with operation when opening and closing
  • ● Attractive appearance: The best appearance among high filler load types. Exudes a sense of luxury in terms of design

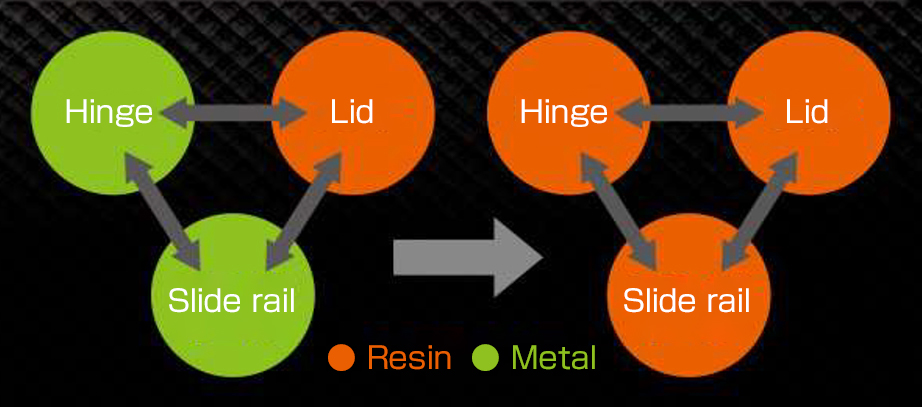

  • ● Integrating parts reduces man-hours

Spec・Properties

Grade name GLAMIDE®
TY-791HQ		 GLAMIDE®
JF-792DG		 PA66 + 50% GF
reinforced
Features High rigidity, low warpage,
attractive appearance		 High rigidity, high impact resistance,
low warpage, attractive appearance		 ー
Composition PA6 + 60％ GF
reinforced		 PA6 + 50％ GF
reinforced		 PA66 + 50% GF
reinforced
Flexural strength
(MPa)		 250 315 370
Flexural modulus
(GPa)		 18.5 15.5 14.5
Charpy impact strength
(KJ/m2)		 8.0 15.5 13.0
Deformation (2 mm thick)
Flat plate warpage (mm)		 0.15 0.15 1.5
  • ● Moldability

    • PA66GF50

    • TY-791HQ・JF-792CD
