Portable battery case that combines high rigidity and an attractive appearance
GLAMIDE®
Features
- ● World-class GF reinforced material with flexural modulus of 28GPa
- ● Ultra-high strength: Flexural strength of 520MPa is stronger than metal and CFRP
- ● Ultra-high impact resistance: Outstanding impact strength (Charpy) of 40kJ/m2 plus
- ● Attractive appearance: High gloss even with high GF filling
- ● Low warpage and outstanding dimensional precision
Spec・Properties
- <<Physical properties table>>
| Grade name | GLAMIDE® JF-30G |
PA66 + 50％ GF reinforced |
PA6 + 30% CF reinforced |
|---|---|---|---|
| Features | Ultra-high rigidity, ultra-high strength, ultra-high impact resistance, low warpage |
ー | ー |
| Composition | PAMXD6 + 70％ GF reinforced |
PA66 + 50％ GF reinforced |
PA66 + 30% CF reinforced |
| Flexural strength (Mpa) |
500 | 315 | 295 |
| Flexural modulus (GPa) |
27.5 | 13.2 | 15.6 |
| Charpy impact strength (KJ/m2) |
40.0 | 13.0 | 8.5 |
| Deformation (2 mm thick) Flat plate warpage (mm) |
0.2 | 1.5 | ー |

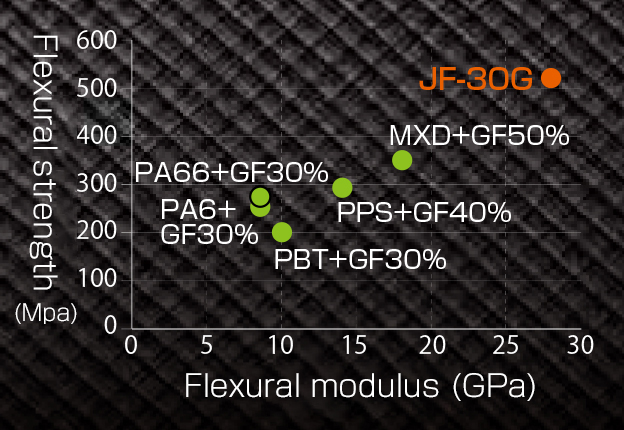

- ● Comparison with injection resin materials

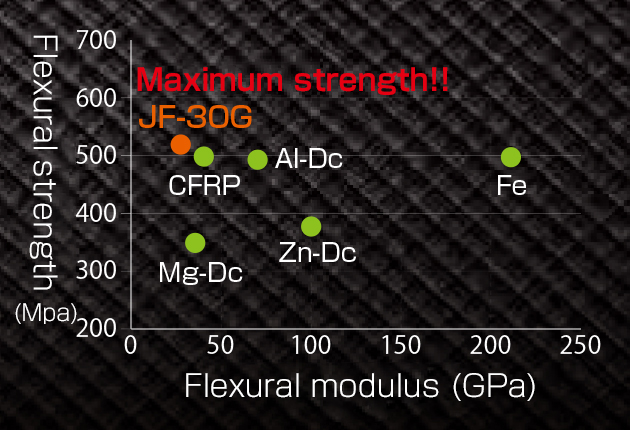

- ● Comparison with metal and CFRP types

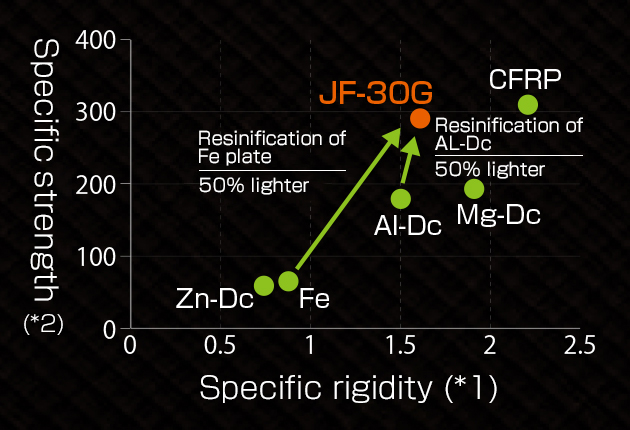

- ● Weight reduction after switching from metal
