PEROXIDASE

PREPARATION and SPECIFICATION

PEO-301/302 are isolated from horseradish root in our own method. PEO-131 is chromatographically separated from the other isoenzymes using SP Sephadex C-50 by the modified method of Paul et al.1) The peroxidase fractions having equal RZ values (ca.3.3) are combined to generate the preparation. This preparation has an RZ value of ca.3.3 and is electrophoretically homogeneous. On the other hand, GradeIII is partially purified preparation.

Appearance Reddish-brown amorphous powder, lyophilized
Activity GradeⅠ　250 Purpurogallin U/mg-solid or more
(-131) (RZ ≥ 3.0, salt free)
GradeⅢ　110 Purpurogallin U/mg-solid or more
(-301) (RZ ≥ 2.0, containing approx. 30 % of stabilizers)
GradeⅢ　180 Purpurogallin U/mg-solid or more
(-302) (RZ ≥ 2.0, salt free)
Contaminant Phosphatase ≤1.0×10-3 % (GradeIII)

PROPERTIES

Stability Stable at −20 ℃ for at least one year （Fig.1,2,3）
Molecular weight approx. 40,000
Structure Glycoprotein with one mole of protohaeminIX 2）
Inhibitors Cyanide, sulfide, fluoride, azide 3）
Optimum pH 6.0−7.0 （Fig.6）
Optimum temperature 45 ℃ （Fig.7）
pH Stability pH 5.0−10.0 (25 ℃, 20 hr) （Fig.8）
Thermal stability below 50 ℃ (pH 6.0, 10 min) （Fig.9）
Effect of various chemicals (Table 1)

APPLICATIONS4〜11)

This enzyme is useful for enzymatic determination of H2O2 in clinical analysis. In particular, the highly purified preparation (grade I) is used as a protein-tracer in histo and cyto-chemistry and as a valuable experimental tool in hodological neurography. In addition, the enzyme preparation has been used as an enzyme label in enzyme immunoassays. Grade III(-302) is suitable for dry chemistry. Furthermore, the enzyme contributes to reduction of phehol in waste water.

ASSAY

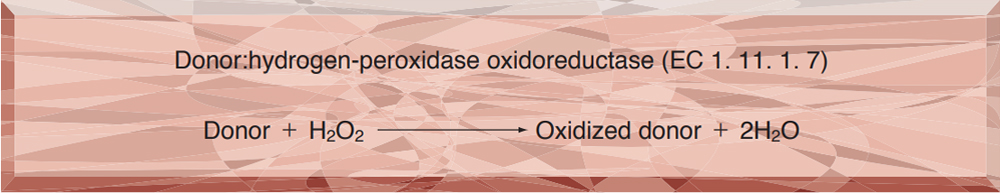

Principle

Principle

The appearance of Purpurogallin is measured at 405nm by spectrophotometry.

Unit definition

One purpurogallin unit causes the formation of one milligram of purpurogallin in 20 seconds at 20°C and pH6.0.
Multiply the measured results in following method by the factor and convert to the units defined above.

Method

Reagents

  • Buffer solution for dilution of hydrogen peroxide:
    50 mM phosphate buffer pH 6.4, containing 0.01% Triton X-100
  • 13.5 mM hydrogen peroxide solution (Should be prepared fresh)
    Add 0.459 ml of 30% (W/V) hydrogen peroxide solution to 300 ml of solution (A).
  • 7.8%(W/V) Pyrogallol solution (Should be prepared fresh)
  • Buffer solution for enzyme dissolution and dilution:
    0.1M phosphate buffer solution pH 6.0, containing 0.01% Triton X-100.

Enzyme sample:
Dilute the enzyme sample to 0.14-0.28 U/ml with ice-cold solution (D) immediately before analysis.

Procedure

1.Prewarming the bottle containing solution (C) at 37°C.

2.Prepare the following reaction mixture in a test tube and prewarm at 37℃ for about 3minutes

4ml Solution (B)
0.2ml Enzyme solution

3.After prewarming the reaction mixture, add 1.0 ml of solution (C) to the reaction mixture and stir, then pour into a cuvette (d = 1.0 cm)
and set on a spectrophotometer controlled at 37°C.
against water.

4.Measure absorbance at 405 nm 30 seconds and 90 seconds after the addition of solution (C).
　　　　ΔODtest=OD(90 seconds)−OD(30 seconds)
At the same time, measure the blank(ΔODblank) by using the same method as the test except that Solution (D) is added instead of Enzyme solution.
　　　　ΔODblank=OD(90 seconds)−OD(30 seconds)

Calculation

Activity* can be calculated by using the following formula.
Volume activity(U/ml) = (ΔODtest−ΔODblank) × 0.473 × df
Weight activity(U/mg) = (U/ml) × 1/C

0.473 : Conversion factor to Purpurogallin units (U) of the above definition
C : Enzyme concentration in dissolution (c mg/ml)
*One purpurogallin unit is equivalent to 13.5 international units determined with o-dianisidine at 25℃

REFERENCES

1)K.G.Paul and T.Stigbrand; Acta Chem.Scand., 24, 3607 (1970).
2)L.M.Shannon et al.; J.Biol.Chem., 241, 2166 (1966).
3)E.Kay et al.; J.Biol.Chem., 242, 2470 (1967).
4)R.Lasek et al.; Brain Res., 8, 319 (1968).
5)W.M.Cowan et al.; Brain Res , 37, 21 (1972).
6)J.H.La Vail et al.; Brain Res., 58, 470 (1973).
7)A.M.Graybiel and M.Devor; Brain Res., 68, 167 (1974).
8)A.H.Bunt et al.; Brain Res., 102, 152 (1976).
9)D.R.Colman et al.; Brain Res., 102, 156 (1976).
10)M.Dubois-Dalcq et al.; J.Histochem.Cytochem., 25, 1201 (1977).
11)M.Sato et al.; Brain Res., 140, 149 (1978).

Table 1. Effect of Various Chemicals on Peroxidase

[The enzyme dissolved in 0.1 M phosphate buffer, pH 6.0 (50 U/mL) was incubated with each chemical at 25 ℃ for 1 hr.］

  • Chemical Concn.(mM) ※Residual
    activity(%)
    None - 100
    Metal salt 2.0
    MgCl2 102
    CaCl2 102
    Ba(OAc)2 105
    FeCl3 98
    CoCl2 97
    MnCl2 97
    ZnCl2 99
    CdCl2 99
    NiCl2 96
    CuSO4 98
    Pb(OAc)2 96
    AgNO3 91
    HgCl2 92
    2-Mercaptoethanol 2.0 94
    PCMB 1.0 98
  • Chemical Concn.(mM) ※Residual
    activity(%)
    MIA 2.0 99
    NEM 2.0 97
    IAA 2.0 99
    Hydroxylamine 2.0 98
    EDTA 5.0 95
    o-Phenanthroline 2.0 98
    α,α′-Dipyridyl 1.0 96
    Borate 50 98
    NaF 2.0 98
    NaN3 2.0 75
    Triton X-100 0.10 % 98
    Brij 35 0.10 % 80
    Tween 20 0.10 % 89
    Span 20 0.10 % 98
    Na-cholate 0.10 % 97
    SDS 0.05 % 98
    DAC 0.05 % 102

※Residual activity was measured by 4AA-DEA method
4AA, 4-Aminoantipyrine; DEA, Diethylaniline
Ac,CH3CO; PCMB, p-Chloromercuribenzoate; MIA, Monoiodoacetate; NEM, N-Ethylmaleimide; IAA, Iodoacetamide;
EDTA, Ethylenediaminetetraacetate; SDS, Sodium dodecyl sulfate; DAC, Dimethylbenzylalkylammonium chloride.

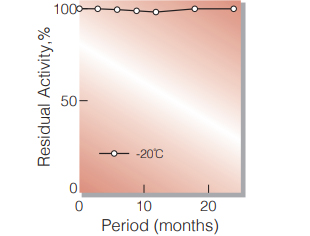

  • Fig.1. Stability (PEO-131) (Powder form)

    Fig.1. Stability (PEO-131)
    (Powder form)

    (kept under dry conditions)

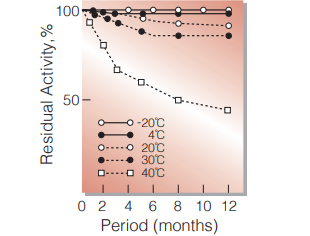

  • Fig.2. Stability (PEO-301) (Powder form)

    Fig.2. Stability (PEO-301)
    (Powder form)

    (kept under dry conditions)

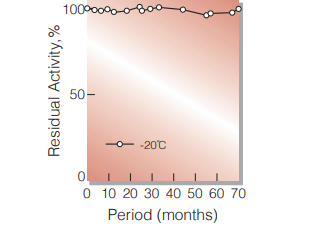

  • Fig.3. Stability (PEO-302) (Powder form)

    Fig.3. Stability (PEO-302)
    (Powder form)

    (kept under dry conditions)

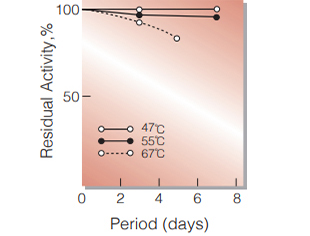

  • Fig.4. Stability (Powder form)

    Fig.4. Stability (Powder form)

    (kept under dry conditions)

  • Fig.5. Stability (Powder form)

    Fig.5. Stability (Powder form)

    (kept under dry conditions)

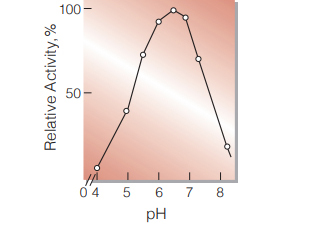

  • Fig.6. pH-Activity

    Fig.6. pH-Activity

    20 ℃, 20 sec-reaction in 0.1 M buffer solution: pH 4.0-6.0, acetate; pH 6.0-8.0, phosphate

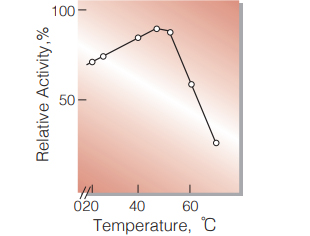

  • Fig.7. Temperature activity

    Fig.7. Temperature activity

    20 sec-reaction in 0.1 M phosphate buffer, pH 6.0

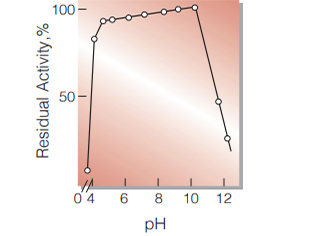

  • Fig.8. pH-Stability

    Fig.8. pH-Stability

    25 ℃, 20 hr-treatment with 50 mM buffer solution: pH 3.5-6.0, acetate; pH 6.0-8.0, phosphate; pH 9.0-11.0 borate

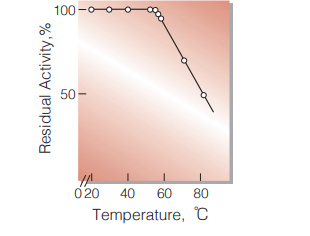

  • Fig.9. Thermal stability

    Fig.9. Thermal stability

    10 min-treatment with 50 mM phosphate buffer, pH 6.0

活性測定法（Japanese）

1. 原理

原理

生成するPurpurogallinを405nmの吸光度の変化で測定する。

2.定義

上記反応原理のもと、20℃、pH6.0にて20秒間に1.0mgのPurpurogallinを生成する酵素量を1Purpurogallin単位(U)とする。
※下記条件下で測定した結果に係数を用いて上記の定義の単位に換算する。

3.試薬

  • 過酸化水素希釈用緩衝液：
    50mM　リン酸緩衝液　pH6.4, 0.01%トリトンX-100含有
  • 13.5mM　過酸化水素溶液(用時調整)：
    過酸化水素希釈用緩衝液 300mLに、30%(W/V)過酸化水素水0.459㎖を添加する。
  • 7.8%(W/V) ピロガロール水溶液(用時調整)
  • 酵素溶解・希釈用緩衝液：
    0.1M　リン酸緩衝液　pH6.0, 0.01%トリトンX-100含有

酵素溶液：酵素標品を予め氷冷したD液で分析直前に0.14～0.28U/㎖に希釈する。

4.手順

①C液の入った容器を37℃の恒温槽で予備加温しておく。

②試験管に下記溶液を混和し37℃で約3分間予備加温する。

4㎖ B液
0.2㎖ 酵素溶液

③予備加温後、C液を1.0ｍL添加して攪拌後、キュベット(d＝1.0cm)に移し、水を対照に37℃に制御された分光光度計にセットする。

④C液添加後30秒後および90秒後の吸光度(405nm)を測定する。
ΔODtest＝OD(90秒)－OD(30秒)

⑤盲検は、②で酵素溶液の代わりにD液を用いる。
ΔODblank＝OD(90秒)－OD(30秒)

5.計算式

U/㎖ ＝(ΔODtest－ΔODblank)×0.473×希釈倍率

U/mg ＝U/㎖×1/C

0.473 : 上記2. 定義のPurpurogallin単位(U)への換算係数
C : 溶解時の酵素濃度(C ㎎/㎖)
(注)１Purpurogallin単位は13.5国際単位(o-dianisidineを基質とし、25℃の反応条件下)に相当する。
