  • High Efficient One-step qRT-PCR Kit THUNDERBIRDTM Probe One-step qRT-PCR Kit

DESCRIPTION

  • THUNDERBIRD™ Probe One-step qRT-PCR Kit is a one-step real-time reverse-transcription polymerase chain reaction (RT-PCR) kit using the highly efficient reverse transcriptase "ReverTra Ace™" and Tth DNA polymerase as a PCR enzyme. This product can be used mainly in TaqMan™ probe assays. The one-step system is suitable for high-throughput analysis because of its simple reaction setup. In addition, this system can reduce the risk of cross-contamination. The combination of the two enzymes and optimized buffer system enable the effective detection and quantification of a small amount of RNA. This kit can also detect various kinds of RNA with different sequences because it is tolerant of target sequence diversity.

Features

  • ・Rapid and highly sensitive
  • ・Tolerant of target sequence diversity
  • ・Tolerant of PCR inhibitors
  • ・Utilization of dUTP
  • ・Multiplex detection

Details

APPLICATIONS

  • ・One-step qRT-PCR
  • ・Compatible real-time PCR cycler
Applied
Biosystems		 ABI PRISM 7000 Roche
Diagnostics		 LightCycler 2.0
ABI PRISM 7700 LightCycler Nano
Applied Biosystems 7300 LightCycler 96/480
Applied Biosystems 7500/Fast Rio-Rad/MJ CFX96 Touch
Applied Biosystems 7900HT Agilent Technologies Mx3000P/3005P/4000
Applied Biosystems StepOne TaKaRa Thermal Cycler Dice
Applied Biosystems StepOneOlus Qiagen Rotor-Gene

STORAGE CONDITION

Store at -20℃, protected from light

COMPONENTS

This kit includes the following components for 250 reactions, with 20 µL per reaction. All reagents should be stored at −20°C.

2× Reaction Buffer*1 2 × 1.25 mL
DNA Polymerase 125 µL
RT Enzyme Mix 125 µL
50× ROX Reference dye 100 µL
RNase free water 2 × 1.25 mL

*12× Reaction Buffer contains essential components for the reaction (buffer, salts, dATP, dCTP, dGTP, and dUTP).
Uracil-N-glycosylase is not supplied with this kit.

Application Data

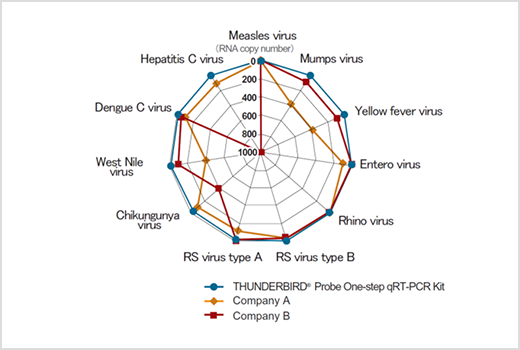

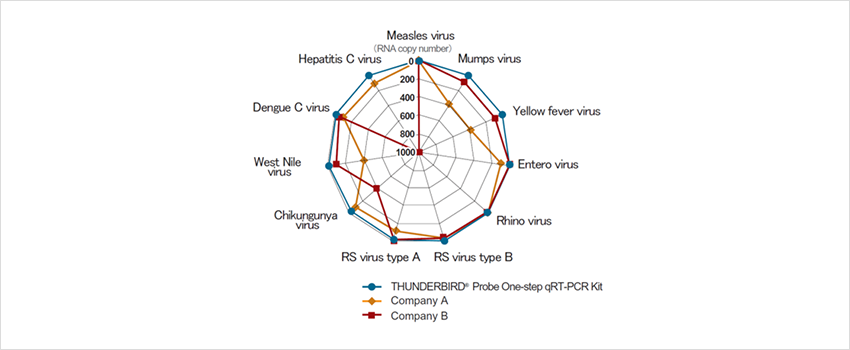

Example 1. The maximum sensitivities of various one-step qRT-PCR kits

A 4n dilution series of various viral RNAs was detected. The primers and TaqMan™ probes were synthesized in accordance with previous reports. The graph indicates the minimum copy numbers that were detected by the kits. THUNDERBIRD™ Probe One-step qRT-PCR Kit was the only kit that detected all viral RNAs tested at high sensitivity (≤30 copies).

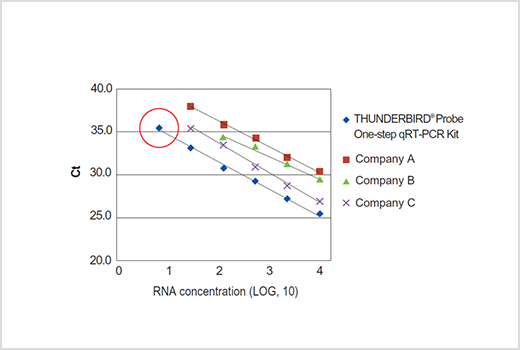

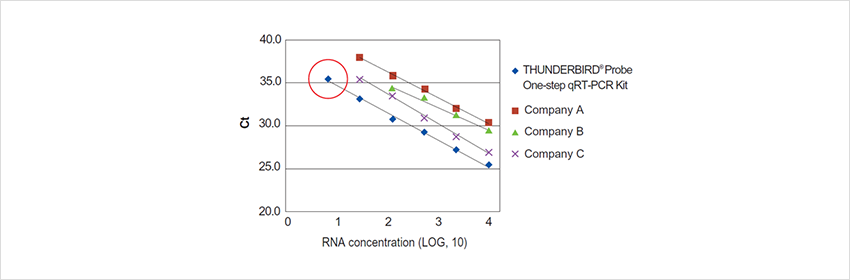

Example 2. Comparison of sensitivity of detection of enterovirus RNA

The sensitivity and quantitativity of various kits were compared by detecting serially (4n ) diluted enterovirus RNA . The primers and probe were synthesized in accordance with a previous report. Applied Biosystems™ StepOnePlusTM was used in this experiment. THUNDERBIRD™ Probe One-step qRT-PCR Kit was the only kit that detected less than 10 copies of RNA and showed wide-ranging quantitation. The results indicate that this kit is suitable for the highly sensitive detection of RNA viruses or mRNA expressed at a low level.

Example 3. Quantification of gene expression using multiplex real-time PCR

The expression levels of IL-1β, TNF-α and GAPDH mRNAs were analyzed using 10n times serially diluted total RNA (1 pg–100 ng) by triplex detection systems with TaqMan™ probes labeled by different fluorescent dyes (Fig.1). LightCycler™ 96 (Roche Diagnostics) was used in this experiment. HeLa S3 cells were incubated for 20 h after being seeded in six-well plates at 4 × 105 cells/well and treated with or without 100 nM phorbol 12-myristate 13-acetate. Then, the expression levels of mRNA were analyzed using purified total RNA from treated cells. The elevations of IL-1β and TNF-α mRNAs were observed upon adding phorbol 12-myristate 13-acetate (Fig. 2).
No significant differences of PCR efficiency and correlation coefficient were observed between the triplex and singleplex.
systems (data not shown).

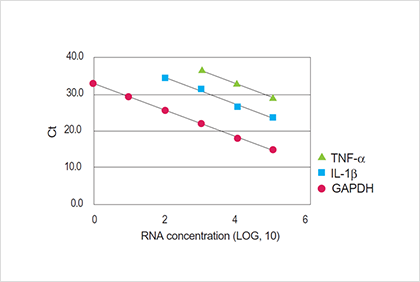

Fig.1 Multiplex detection

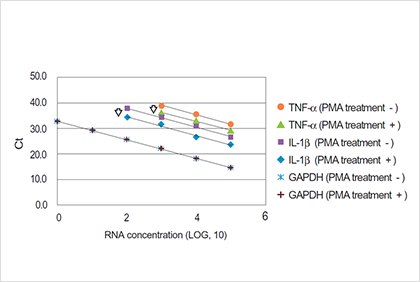

Fig.2 Results of expression analysis using multiplex detection

REFERENCES

  • Takagi M, Nishioka M, Kakihara H, Kitabayashi M, Inoue H, Kawakami B, Oka M, and Imanaka T., Appl. Environ. Microbiol., 63: 4504–10 (1997)
  • Hashimoto H, Nishioka M, Fujiwara S, Takagi M, Imanaka T, Inoue T and Kai Y, J. Mol. Biol., 306: 469–77 (2001)
  • Mizuguchi H, Nakatsuji M, Fujiwara S, Takagi M and Imanaka T, J Biochem., 126:762-8 (1999)
